| Range | EVlink |

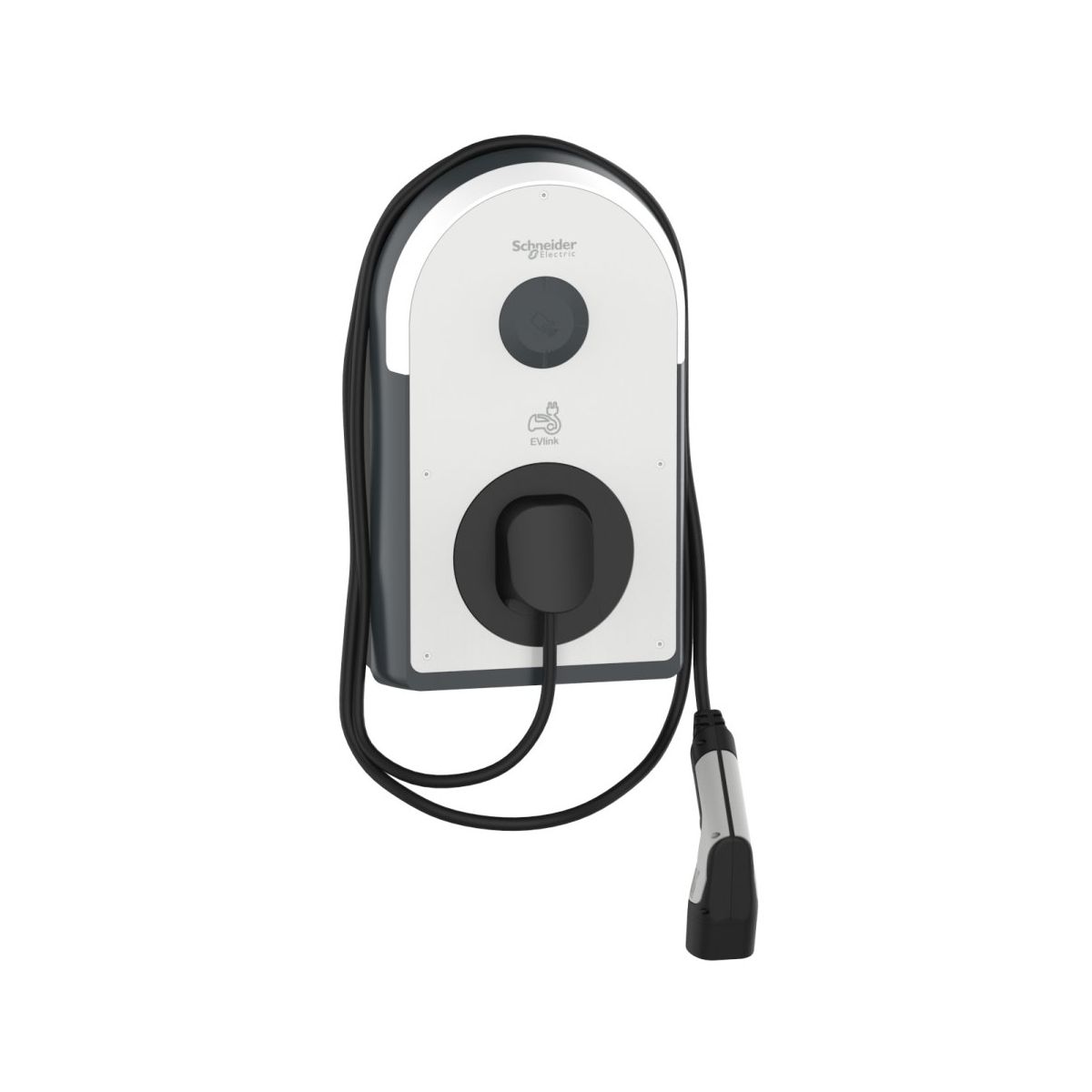

| Product name | EVlink Pro AC |
| Product or component type | Charging station |
| Device short name | EVB3 |
| Communication network type | Ethernet Bluetooth 3G/4G modem optional Modbus TCP |
| Connector type | 2 RJ45 for Ethernet LAN connection |
| Communication port protocol | OCPP 1.6 |
| Communication service | JSON smart charging for OCPP 1.6 |
| Operating mode | Clustered architecture Standalone |
| Function available | Diagnosis capabilities Charge detail records Load management |
| Range | EVlink |
| Product name | EVlink Pro AC |
| Product or component type | Charging station |
| Device short name | EVB3 |
| Communication network type | Ethernet Bluetooth 3G/4G modem optional Modbus TCP |
| Connector type | 2 RJ45 for Ethernet LAN connection |
| Communication port protocol | OCPP 1.6 |
| Communication service | JSON smart charging for OCPP 1.6 |
| Operating mode | Clustered architecture Standalone |
| Function available | Diagnosis capabilities Charge detail records Load management |
| Range compatibility | EVlink (EcoStruxure EV Charging Expert) EVlink (EVlink Pro AC Metal) EcoStruxure (EcoStruxure EV Advisor) |
| Type of installation | Indoor Outdoor |
| Provided equipment | 1 residual direct current detection device (RDC-DD) integrated 1 residual current device (RCD) integrated 1 MNx auxiliary contact integrated 1 energy meter |
| Accuracy class of energy meter | Class 1 |
| Protection device type | Residual direct current detection device (RDC-DD) - 6 mA Residual current device (RCD) - 30 mAtype A-SI (Super Immunised) |
| Poles description | 3P + N for power circuit |
| Mounting mode | Wall-mounted Wall-mounted (kit enclosure) Floor-standing (pedestal) Floor-standing (kit enclosure) |
| Mounting support | Pedestal, to be ordered separately Kit enclosure, to be ordered separately |
| Cable entry | Bottom entry Top entry Rear entry |
| [Us] rated supply voltage | 380...415 V AC 50/60 Hz |
| Nominal output power | 11 kW 16 A 380...415 V |
| Socket number | 1 |
| Output type | Front side T2 attached cable / silver plated contacts 5 m |
| Access control system | Badge RFID conforming to ISO/IEC 14443 A and B Badge RFID conforming to ISO/IEC 15693 Badge NFC Free access |
| RFID compatible technology | MIFARE Classic MIFARE Ultralight MIFARE Plus |
| NFC frequency | 13.56 MHz |
| NFC tag type | Type 1 Type 2 Type 4 Type 5 |
| Earthing system | TT TN-S TN-C-S Compatible IT with additional isolation transformer on the power supply |
| Number of inputs | 3 |
| Input type | Binary for power limitation closing contact Binary for delayed charging closing contact Binary for vehicle detection closing contact |
| Control type | can be controlled by remote |
| Local signalling | 1 green LED light strip, function: available 1 blue LED light strip, function: charging 1 red LED light strip, function: fault indication |
| Standards | EN/IEC 61851-1:ed. 3 EN/IEC 62196-1:ed. 2 EN/IEC 62196-2:ed. 1 EN 61000-6-2:2019 EN 61000-6-3:2007 EN 61000-6-3:2011/A1 IEC 60884-1 NF C 61314 ISO 15118 |
| Product certifications | EV Ready CE |
| IP degree of protection | IP55 |
| IK degree of protection | IK10 |
| Ambient air temperature for operation | -30…50 °C |
| Ambient air temperature for storage | -40…80 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 2000 m without derating |
| Height | 529 mm |
| Width | 317 mm |
| Depth | 183 mm |
| Net weight | 10 kg |
| Colour |
Front face: white (RAL 9003) Housing: dark grey (RAL 7016) Back part: black (RAL 9005) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 28.5 cm |
| Package 1 Width | 35.0 cm |
| Package 1 Length | 57.5 cm |
| Package 1 Weight | 11.67 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 72.0 cm |
| Package 2 Width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Package 2 Weight | .0 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile |
End of Life Information |
|
|
|
|
|
|
|
