| Đầu ra DC | Output Power: 400 kW Dynamic Power Sharing: 50 kW power granularity Output voltage: 150 - 980 V Output current (peak): CCS: 600 A J3400: 375 A Number of outlets: dual outlet Total system efficiency: up to 97 % |
| Đầu vào AC | Nominal voltage: (CE): 400 Vac (NA): 480 Vac Nominal input current (RMS): (CE): 612 A (NA): 510 A Frequency: (CE): 50 Hz (± 5 %) (NA): 60 Hz (± 5 %) Earthing systems: (CE): TN-C, TN-C-S, TN-S, TT (NA): WYE Inlet cable size per phase (no neutral): max. 2 x 300 mm2 (600 kcmil) Power factor: > 0.99 @ full load Total Harmonic Distortion (THD): < 3 % Overvoltage category: III SPD: (CE): Type 1 + 2 (NA): Type 1 |

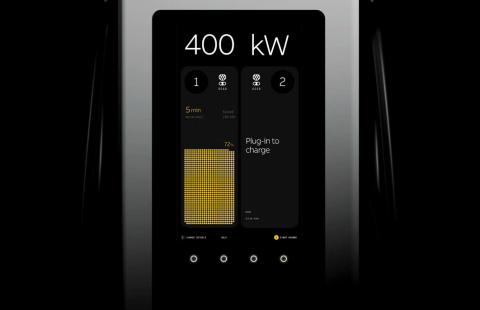

| Màn hình hiển thị | Type: 32” full-color LCD; Interface: 4 push buttons |
| Chiếu sáng | Roof: 360° dual RGBW LED strips; Gun holder: RGBW LEDs |
| Ngôn ngữ | English, French, Spanish, German, Italian, Norwegian, Dutch (others available via software upgrade) |
| Tuỳ chọn đầu nối | Patented two-phase cooling technology (CCS1, CCS2), Air-cooled J3400 (NACS) |
| Hệ thống quản lí cáp (CMS) | 2 x integrated self-retracting swing arm |
| Cáp | Length: 4.8 m (15.7 ft); Reach: 3.5 m (11.4 ft) Length: 7 m (22.9 ft); Reach: 6.3 m (20.7 ft) Type: Air-cooled |
| Phương thức xác thực | RFID, Autocharge, Plug and Charge, credit/debit card, mobile app |
| RFID hệ thống | Mifare ISO 14443 A/B to part 4 and ISO 15693, ISO 18092/ECMA-340 (NFC). Others available on request (Calypso, Ultralight, PayPass, HID, and more) |
| Quản lí từ xa | Access control, configuration, diagnostics, software updates |
| Điều kiện vận hành | Operating from -30 °C to 55 °C (-22 °F to 131 °F) Storage / transport from -5 °C to 40 °C (23 °F to 104 °F) Altitude: 2000 m (6562 ft) Humidity: up to 95 %, non-condensing Impact resistance: IK10 (Display: IK08) IP rating: IP54, NEMA 3R; indoor and outdoor rated Noise emission: 65 dB(A) average @ 1 m, 25 °C (77 °F), full power Intended use: indoor and outdoor Mounting options: floor mounted Environment pollution degree: Class 3 (outside), Class 2 (inside) |
| Kích thước | H x W x D: 2256 x 810 x 790 mm (88.8 x 31.9 x 31.1 in) Weight: 730 kg (1610 lbs) Accessibility: meets ADA requirements for height, reach, and user interface |
| Tiêu chuẩn an toàn | (CE): EN 61851-23: 2014/AC: 2016-06, EN IEC 61851-1: 2019 (NA): UL 2202: 2022, CSA 22.2 No.346: 22, UL 2231-1, UL 2231-2 |
| Đo lường | (CE): Eichrecht (NA): CTEP/NTEP |
| EMC | (CE): IEC 61851-21-2: 2021 (NA): 47 CFR FCC Part 15, Subpart B, §15.107, §15.109 (Class A) |
| Sản xuất | USA & Europe |
| Kết nối mạng | Dual SIM, GSM/3G/4G/5G, 10/100 Base-T Ethernet |
| Giao thức truyền thông mạng | Open Charge Point Protocol (OCPP) 1.6J and 2.0.1 |
| Giao thức giao tiếp với phương tiện | DIN SPEC 70121, ISO 15118-2, ISO 15118-3, Autocharge, Plug and Charge |
| Dòng ngắn mạch định mức | (CE): 50 kA (NA): 65 kA |
| Chỉ thị RED | ETSI EN 300 330 V2.1.1 2017, EN 50364:2018 (RFID), ETSI EN 301 908-13 V.13.2.1 2022, IEC 62311:2019, EN IEC 62311:2020 (4G test) |
| Tiêu chuẩn bổ sung | DC Vehicle connector compliant with IEC 62196-1:2014, IEC 62196-3:2014, Cabinet IP rating according to IEC 60529:2013 |
| Tuổi thọ | 10 years |
